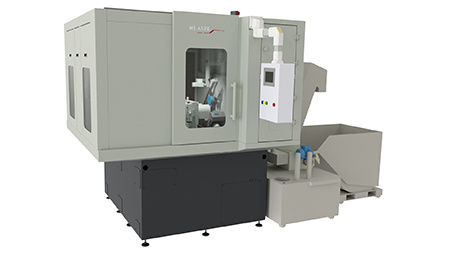

Drilling and Tapping Combined Machines are used to execute complementary operations in addition to the tapping. Operations like drilling, boring, facing, chamfering are so performed, sequentially or in overlapping, exploiting the single positioning/clamping of the part under process. That way the output rate is strongly increased. A top performer machine can be gifted with 2-3-4 working units.

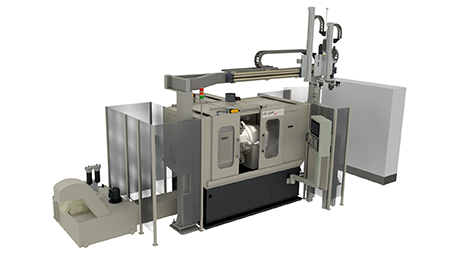

Transfer Machines are conceived to work out medium/big sized batches of parts, characterized by the need of high precision. At the core of the machine there is the permanent clamping system, pneumatically or hidraulically opered, which combines precision, repeatability and rigidity. HS ASPE transfer machines are built on a peculiar bed which guarantees very high rigidity joined with flexibility. This peculiarity allows the adoption of the top ranked equipment (Direct Drive Technology) and then the achievement of the top of operational performances inside the top customization degree.
|CONCEPT||DRILLER TAPPER||DRILLER TAPPER||TRANSFER HORIZONTAL||TRANSFER VERTICAL|
|Spindles||Nr.||3 Front + 1 Rear||2 Front + 2 Front||4 Front + 2 Rear||6 - 12|
|Part Clamping system||Type||Hydraulic pusher||Hydraulic pusher||Self centering chucks||Self centering chucks|
|Material Hardness||(600 N/mm²)||MAX CAPACITY|
|External Thread Rolling||mm.||M12||M12||M12||M12|
|Other Machining Operations||X||X|
|Max. OD||mm.||ø 40||ø 40||ø 50||ø 50|
|Max. Thread Depth||mm.||40||40||50||50|
|Spindle speed range (Option)||rpm||0 - 6000 (13000)||0 - 6000 (13000)||0 - 6000 (13000)||0 - 6000 (13000)|
|Production Speed up to||ppm||40||80||30||30|
